构建状态统一通知推送

# 统一通知推送

# 脚本功能

实现了构建通知和监控告警功能,配置完成后,钉钉和微信将收到项目构建开始、成功、失败的通知,以及项目监控的异常、恢复通知。

# 配置说明

  • jpom_url:Jpom的地址,在通知内容中可以点击链接跳转到Jpom
  • dingtalk_token:钉钉群自定义机器人webhook链接中的token
  • wxpusher_apptoken:WxPusher平台创建应用时生成的appToken
  • wxpusher_topic_id:WxPusher平台创建主题时生成的topicId
  • wxpusher_watch_titles:可选内容:构建通知、监控告警,wxpusher关注的事件标题,为避免过度打扰个人微信,wxpusher只推送关注的内容
  • wxpusher_watch_status:可选内容:开始、成功、失败、异常、恢复,wxpusher关注的事件状态

# 注意事项

  1. 钉钉群会推送所有内容,微信公众号(WxPusher)仅推送关注的内容
  2. wxpusher_watch_titles和wxpusher_watch_status只要有一个匹配就会进行推送
  3. 如果不需要推送到微信,将watch_title和watch_status置空即可
  4. 注意脚本触发器地址在Jpom所属网络中能否访问,可以通过脚本执行日志查看触发情况
  5. 钉钉群添加自定义机器人的方式请自行搜索,WxPusher注册链接:WxPusher (opens new window)
  6. 钉钉机器人不要开启加签,添加自定义关键词:Jpom

# 使用流程

# 1. 创建脚本

在【脚本管理】⇒【脚本列表】中【新增脚本】,复制下面脚本内容到Script内容即可,示例图:

Untitled

# 2. 填写参数

按照配置说明在脚本中填写参数后保存脚本,注意:不是默认参数那里添加参数,是直接修改脚本内容

# 3. 生成触发器

按图中所示点击按钮生成触发器并复制触发器链接

Untitled

Untitled

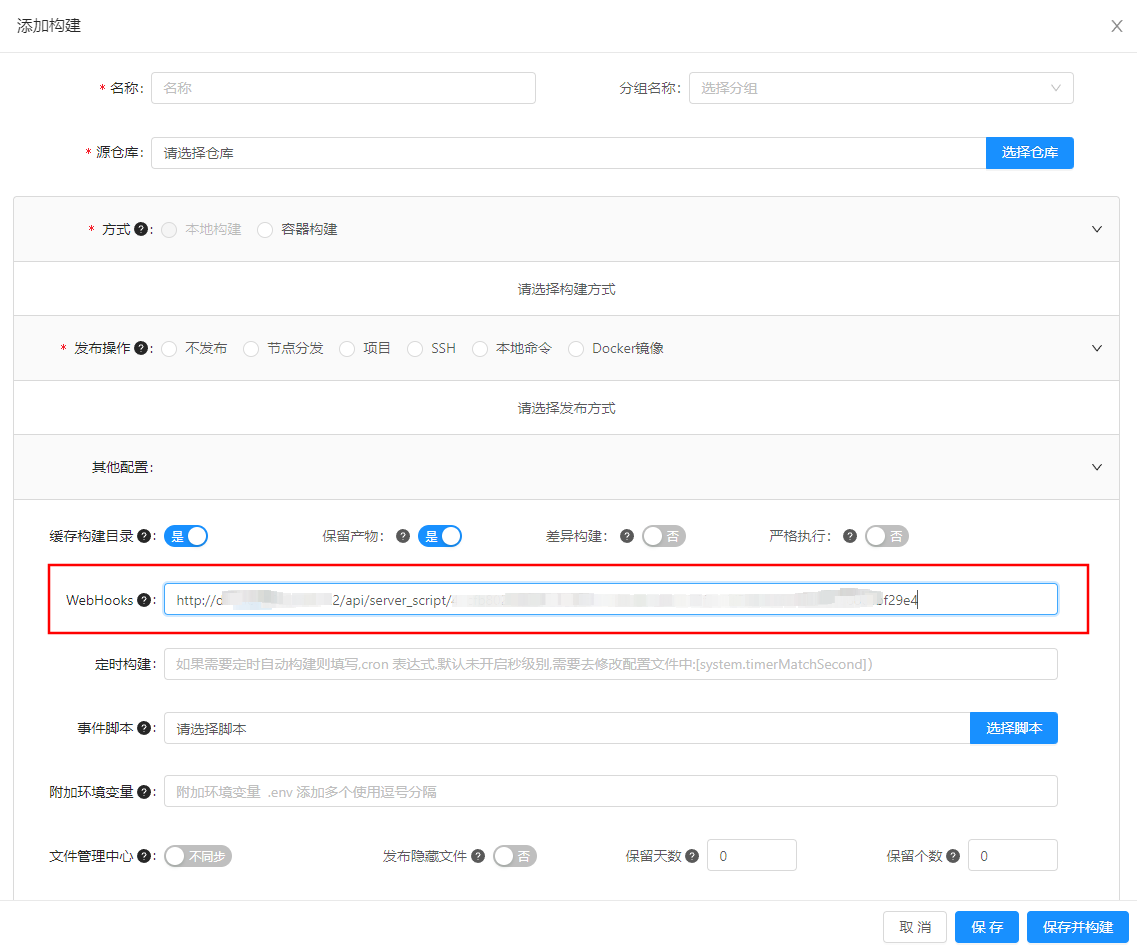

# 4. 在构建和监控中填写WebHooks

Untitled

# 5. 效果图

Untitled

Untitled

Untitled

Untitled

# 脚本内容

#!/bin/bash
######################################自定义参数区域#######################################
# Jpom链接
jpom_url="http://sample.com:2122"

# 钉钉webhook的token,不要打开加签,通过关键词或IP地址过验证
dingtalk_token="......"

# wxpusher的appToken
wxpusher_apptoken="......"
# wxpusher的主题id
wxpusher_topic_id="12345"
# wxpusher关注的事件标题
wxpusher_watch_titles=("监控告警")
# wxpusher关注的事件状态
wxpusher_watch_status=("失败")
######################################自定义参数区域#######################################

# 钉钉推送地址
dingtalk_url="https://oapi.dingtalk.com/robot/send?access_token=${dingtalk_token}"
# wxpusher推送地址
wxpusher_url="https://wxpusher.zjiecode.com/api/send/message"

# URL编码
urlencode() {
  local string="$1"
  local encoded=""
  local length="${#string}"

  for ((i = 0; i < length; i++)); do
    local char="${string:i:1}"
    case "$char" in
      [a-zA-Z0-9.~_-])
        encoded+="$char"
        ;;
      *)
        encoded+="$(printf '%%%02X' "'$char")"
        ;;
    esac
  done

  echo "$encoded"
}

# 检查变量是否存在于数组中
array_contains() {
  local target_str=$1
  local str_list=$2

  for item in "${str_list[@]}"; do
    if [ "$item" = "${target_str}" ]; then
      return 0  # 返回状态码 0 表示存在
    fi
  done

  return 1  # 返回状态码 1 表示不存在
}

# 推送到钉钉群
function push_to_dingtalk() {
  # 推送参数
  title=$1; status=$2; name=$3; contents=$4;
  # 拼接ActionCard的text字段,格式为markdown
  data="# [${title}](${jpom_url})\n---\n"
  # 拼接状态
  case "${status}" in
  "开始" )
    data="${data}- 状态:\u003cfont color\u003d#2f54eb\u003e${status}\u003c/font\u003e\n"
    ;;
  "成功" | "恢复" )
    data="${data}- 状态:\u003cfont color\u003d#52c41a\u003e${status}\u003c/font\u003e\n"
    ;;
  "失败" | "异常" )
    data="${data}- 状态:\u003cfont color\u003d#f5222d\u003e${status}\u003c/font\u003e\n"
    ;;
  esac
  # 拼接内容列表
  for content in "${contents[@]}"; do
    data="${data}- ${content} \n"
  done
  # jpom链接urlencode
  encoded_jpom_url=$(urlencode "${jpom_url}")
  # 禁用侧边栏打开的jpom链接
  dingtalk_jpom_url="dingtalk://dingtalkclient/page/link?url=${encoded_jpom_url}&pc_slide=false"
  # 构建JSON消息体:ActionCard
  message_data='{
    "msgtype": "actionCard",
    "actionCard": {
      "title": "'${title}'",
      "text": "'${data}'",
      "hideAvatar": "0",
      "btnOrientation": "0",
      "btns": [{"title": "Jpom运维平台", "actionURL": "'${dingtalk_jpom_url}'"}]
    }
  }'
  # 发送Curl请求
  curl -H "Content-Type: application/json" -X POST -d "${message_data}" "${dingtalk_url}"
}

# 推送到wxpusher
function push_to_wxpusher() {
  # 推送参数
  title=$1; status=$2; name=$3; contents=$4;
  # 拼接text字段,格式为markdown
  message_content="# [${title}](${jpom_url})\n---\n"
  # 拼接状态
  case "${status}" in
  "开始" )
    message_content="${message_content}- 状态:\u003cfont color\u003d#2f54eb\u003e${status}\u003c/font\u003e\n"
    ;;
  "成功" | "恢复" )
    message_content="${message_content}- 状态:\u003cfont color\u003d#52c41a\u003e${status}\u003c/font\u003e\n"
    ;;
  "失败" | "异常" )
    message_content="${message_content}- 状态:\u003cfont color\u003d#f5222d\u003e${status}\u003c/font\u003e\n"
    ;;
  esac
  # 拼接内容列表
  for content in "${contents[@]}"; do
    message_content="${message_content}- ${content} \n"
  done
  # 构建JSON消息体
  message_data='{
    "appToken":"'${wxpusher_apptoken}'",
    "content":"'${message_content}'",
    "summary":"'${title}'【'${name}'】状态【'${status}'】",
    "contentType":3,
    "topicIds":['${wxpusher_topic_id}'],
    "url":"'${jpom_url}'",
    "verifyPay":false
  }'
  # 发送Curl请求
  curl -H "Content-Type: application/json" -X POST -d "${message_data}" "${wxpusher_url}"
}

# 通用推送
function common_push() {
  # 推送参数
  title=$1; status=$2; name=$3; contents=$4;

  # 推送到钉钉群
  push_to_dingtalk $title $status $name $contents;

  # 推送到wxpusher
  if array_contains $title $wxpusher_watch_titles; then
    push_to_wxpusher $title $status $name $contents;
  elif array_contains $status $wxpusher_watch_status; then
    push_to_wxpusher $title $status $name $contents;
  fi
}

# 构建事件推送
function build_event_push() {
  title="构建通知";
  cur_datetime=$(date +"%Y-%m-%d %H:%M:%S")
  name=$trigger_build_name
  contents=(
    "任务:#${trigger_build_number_id}" "项目:${trigger_build_name}"
    "执行人:${trigger_trigger_user}" "时间:${cur_datetime}"
  )
  case "${trigger_type}" in
  "startReady" )
    status="开始";
    common_push $title $status $name $contents;
    ;;
  "success" )
    status="成功";
    common_push $title $status $name $contents;
    ;;
  "stop" | "error" )
    status="失败";
    contents+=("错误信息:${trigger_status_msg}");
    common_push $title $status $name $contents;
    ;;
  esac
}

# 监控事件推送
function monitor_event_push() {
  title="监控告警";
  cur_datetime=$(date +"%Y-%m-%d %H:%M:%S")
  name=$trigger_project_name
  contents=(
    "监控:${trigger_monitor_name}" "节点:${trigger_node_name}" "项目:${trigger_project_name}"
    "时间:${cur_datetime}" "内容:${trigger_title}"
  )
  case "${trigger_run_status}" in
  "true" )
    status="恢复";
    common_push $title $status $name $contents;
    ;;
  "false" )
    status="异常";
    common_push $title $status $name $contents;
    ;;
  esac
}

if [ -n "$trigger_build_id" ]; then
  # 构建事件
  build_event_push
elif [ -n "$trigger_monitor_id" ]; then
  # 监控事件
  monitor_event_push
fi
